Popular Advertising Materials Wood Acrylic Co2 Laser Engraving Cutting Machine

Popular Advertising Materials Wood Acrylic Co2 Laser Engraving Cutting Machine

Model No.︰UG-9060L

Brand Name︰UPGOAL

Country of Origin︰China

Unit Price︰US $ 1000 / set

Minimum Order︰1 set

Inquire Now

Product Description

Popular Advertising Materials Wood Acrylic Co2 Laser Engraving Cutting Machine

Application

Application industry: Marble engraving, Advertisement, Gift Package, Model.

Application Materials: Acrylic,crystal, marble, wood, paper, cloth, leather, rubber, glass, ceramic tile.

Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality RECI W2 ( rated power 90W , maxinum power 100W) Co2 laser tube,  long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port RuiDa 644G control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

With WIFI connection function, no need to use USB cable, convenient and improving working efficiency.

Cooling System

Industrial chiller CW--3000, ensuring the laser tube long time continuous working.

Technical parameters

Effective working area

900*600mm(3*2inch)

Laser type

Co2 sealed-off laser tube,10.64um

Laser tube power

Reci W2, rated power 90W, maximum power 100W

Working table

Honey comb and knife strip, double working table

Lifting table

Auto, up and down 200mm

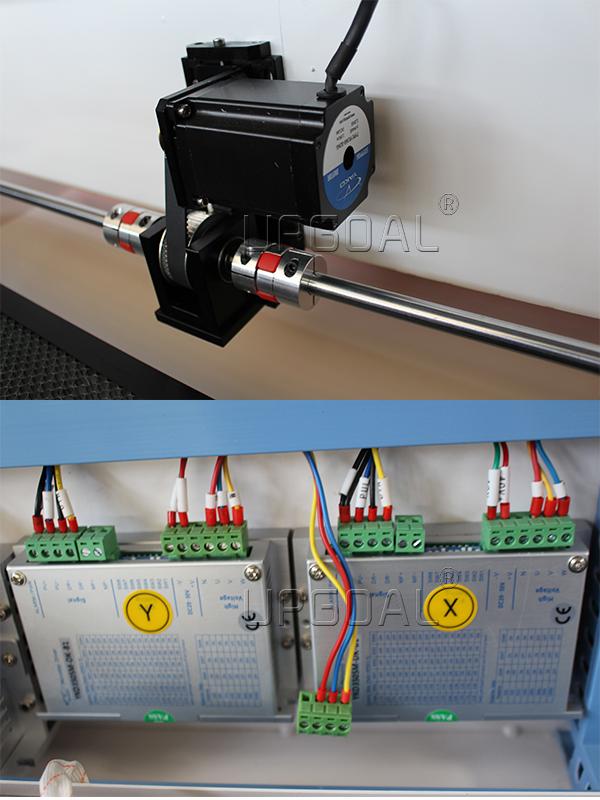

Driver mode

3 phases stepper motor and Driver, Yako brand

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

Belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa RDC6445G(EC)

Control software

RDWorksV8

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller CW-3000 cooling

Water protection system

Yes

Focus

Auto focusing

Positioning

Infrared positing

Blow-off system

Air pump and air blower

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLT、DST、DXF、BMP, DWG、AI、LAS,etc

Voltage

AC220V/110V, 50/60Hz, single phase

Certificate

CE/FDA
